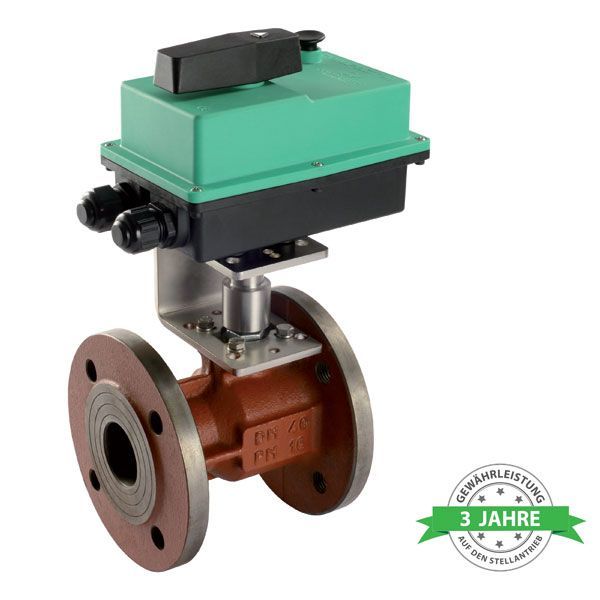

Compact Pro series - Electric ball valves IP 67 All-In-One
PN 10 - 40 (64 stainless steel), Ø 20 - 50, 22 Nm
3 years warranty on the motor
Description
Actuator:
- All-in-one motor for 2-point control (2P) - on / off & 3-point control (3P) - control
- ISO 5211 version
- All external components made of stainless steel
- CE certified
- Maintenance-free
- For industrial plants
- 2 micro-switches integrated

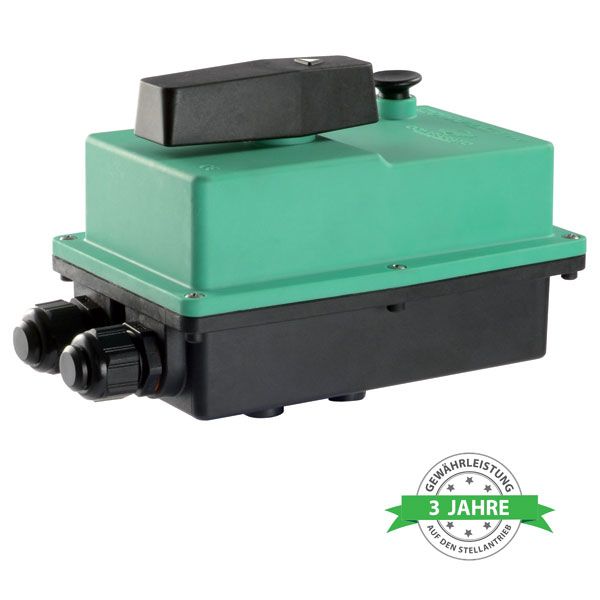

- Optional: manual override, anti-condensation heating, 45 seconds | 9 seconds - operating time
Valve body:
- Brass valve body PN16, stainless steel AISI 316 PN 64, plastic PN 16
- Full passage
- PTFE seals

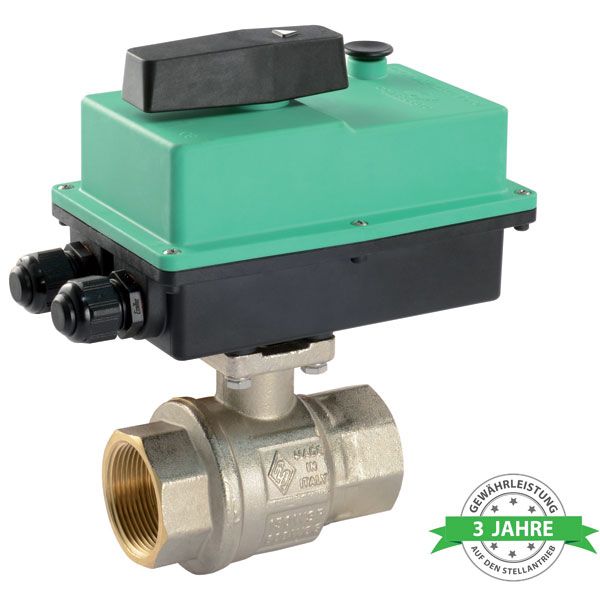

- 2-way, 3-way, flange, butterfly valves, spacers ISO 5211
Specifications
| Motor type | bidirectional, All-In-One for 2-point control (2P) - on/off & 3-point control (3P) - control |

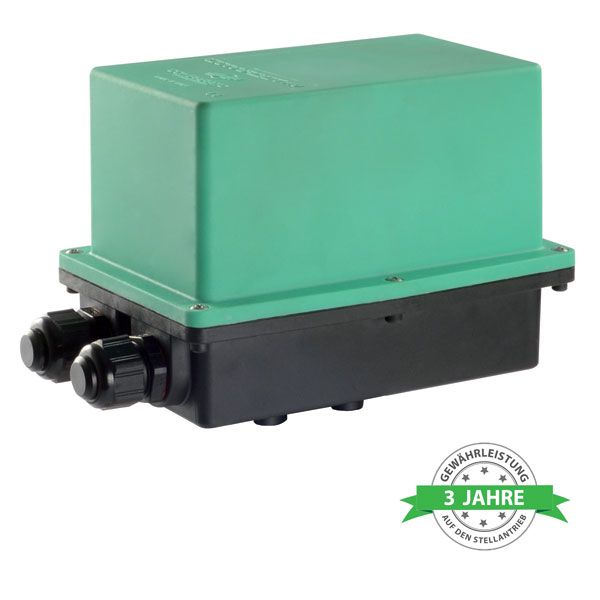

| Voltage | 24V 50/60Hz | 230V 50/60Hz | 110V 50/60Hz | 12V DC/AC | 24V DC/AC |
| Motor material | polyamide / 50% glass fiber - steam tested |
| Rotation | 90 ° | 180 ° |
| Operating time / torque | 45 seconds / 22Nm | 9 seconds / 22 Nm (optional) |
| Ambient temperature range | -10°C - +50°C |
| Protection class | IP 67 |
| Ball valve connection | ISO 5211 |
| Ball valve types | 2-way | 3-way | flange | butterfly valves |
| Material | brass valve body PN10 - PN40 | Stainless steel AISI 316 PN 64 | Plastic PN 16 |
| Connections | G 1/2" | G 3/4" | G 1"| G 1 1/4" | G 1 1/2"| G 2" |
| Orifice size [mm] |
15.0 | 20.0 | 25.0 | 32.0 | 40.0 to 50.0 (only plastic & butterfly valves) | 63.0 (plastic only) all full passage |
| Operating pressure range | 0 - 16 bar | 0 - 64 bar (stainless steel) |
| Seal material | PTFE (both sides) |
| Fluid temperature range | -10°C - + 100°C | optionally with spacer |
| Integrated | 2 micro-switches |
