Push-on fittings are available in different materials for different purposes, such as compressed air or vacuum applications. Push-on fittings are made from PP, acetal resin, PVDF, brass and stainless steel.

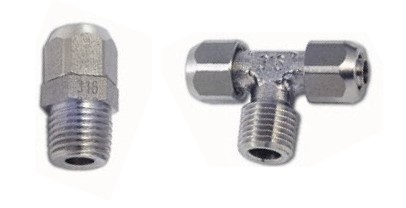

Push-on fittings made of stainless steel
Easy to use and very robust
Suitable for drinking water and food
Temperature range from -40°C to + 140°C
Working pressure up to 25 bar
Thread type: BSPT ISO 7, BSPP ISO 228
Static gripping system for a secure hold of the tube
REACH and RoHS2 compliant

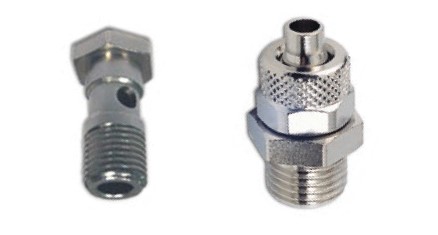

Brass push-on fittings
Easy to use and very robust
Temperature range from -20°C to + 200°C
Working pressure up to 18 bar
Thread type: BSPT ISO 7, BSPP ISO 228, metric
Static gripping system for a secure hold of the tube
REACH and RoHS2 compliant

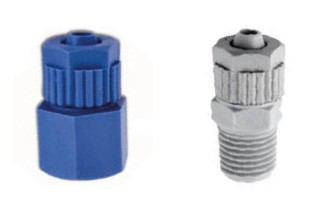

Push-on fittings made of PP
Easy to use and very robust
Suitable for drinking water and food
Temperature range from + 4°C to + 90°C
Working pressure up to 14 bar
Thread type: BSPT ISO 7
Static gripping system for a secure hold of the tube
REACH and RoHS2 compliant

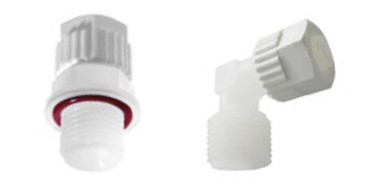

Push-on fittings made of PVDF
Easy to use and very robust
Suitable for drinking water and food
Temperature range from -20°C to + 120°C
Working pressure up to 14 bar
Thread type: BSPT ISO 7
Static gripping system for a secure hold of the tube
REACH and RoHS2 compliant

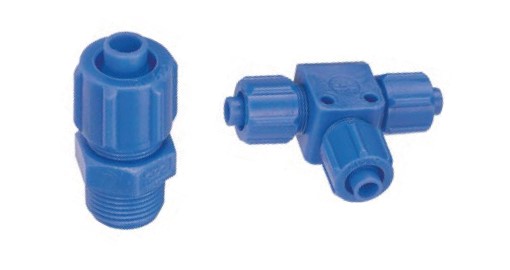

Acteal Resin push-on fittings
Easy to use and very robust
Temperature range from 0°C to + 60°C
Working pressure up to 10 bar
Suitable for vacuum applications down to -750 mmHg
Thread type: BSPT ISO 7
Static gripping system for a secure hold of the tube
