Push-in fittings

Push-In fittings stainless steel
Push-In fittings brass with T.E.A. surface treatment
PusPush-In fittings nickel-plated brass
PusPush-In fittings compact
PusPush-In fittings POM
PusPush-In fittings plastic

Description

Push-in fittings are available in different designs for different purposes: push-in fittings made of plastic, compact push-in fittings, push-in fittings brass-nickel-plated, push-in fittings brass-nickel-plated with T.E.A. Surface treatment, POM push-in fittings - high performance and push-in fittings made of stainless steel.

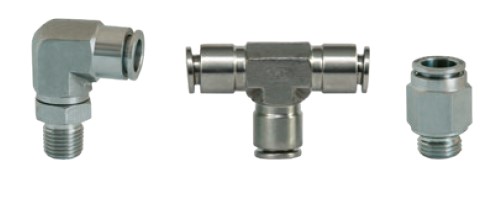

Push-in fittings made of stainless steel

  • Suitable for drinking water, food and aggressive media
  • Working pressure up to 20 bar at 20°C
  • Temperature range from -20°C to + 150°C
  • High chemical and mechanical resistance
  • High corrosion resistance
  • FKM seal
  • Different thread types: BSPT ISO 7, BSPP ISO 228, UNF, UNS, NH
  • REACH and RoHS2 compliant
  • Meets international standards DM174, EC1935

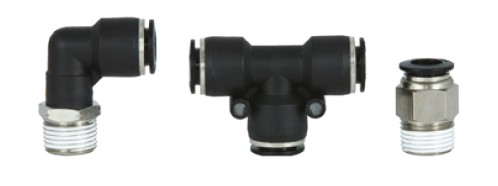

Push-In fittings plastic

Push-In fittings plastic

  • Working pressure up to 16 bar
  • Temperature range from -20°C to + 80°C
  • Suitable for vacuum applications down to -750 mmHg
  • Plastic STEM system for connecting different types of fittings
  • Different thread types: BSPT ISO 7, BSPP ISO 228, metric, NPT, UNF
  • High quality and long service life thanks to high-quality technopolymers
  • Checked for 100% leakproof
  • Silicon-free materials
  • ISO 14743 compliant
  • REACH and RoHS2 compliant
  • Static gripping system for a secure hold of the tube

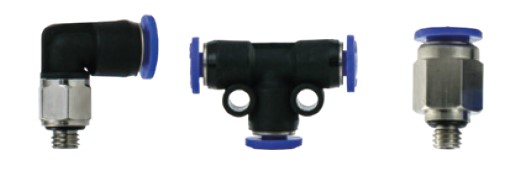

Compact push-in fittings

Compact push-in fittings

  • Suitable for installation in confined spaces with limited space
  • Temperature range from 0°C to + 60°C
  • Working pressure up to 10 bar
  • Suitable for vacuum applications down to -750 mmHg
  • For tubes up to 3 mm in diameter
  • Different thread types: BSPT ISO 7, BSPP ISO 228, metric
  • Static gripping system for a secure hold of the tube
  • Silicon-free materials
  • High quality and long service life thanks to high-quality technopolymers
  • REACH and RoHS2 compliant

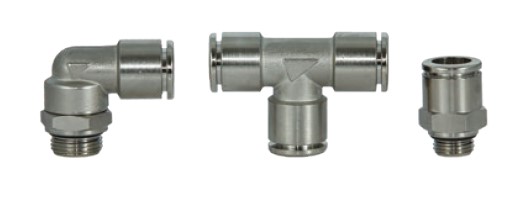

Nickel-plated brass push-in fittings

Nickel-plated brass push-in fittings

  • Robust high-performance connectors for easy use
  • Temperature range from -20°C to + 80°C
  • Working pressure up to 16 bar
  • Suitable for vacuum applications down to -750 mmHg
  • Different thread types: BSPT ISO 7, BSPP ISO 228, metric, NPT, UNF
  • Static gripping system for a secure hold of the tube
  • Silicon-free materials
  • REACH and RoHS2 compliant
  • ISO 14743 compliant

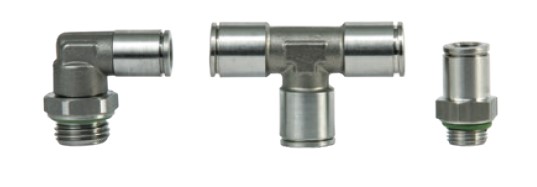

Push-in fittings brass nickel-plated with T.E.A. Surface treatment

Push-in fittings brass nickel-plated with T.E.A. Surface treatment

  • High corrosion resistance thanks to T.E.A. Coating
  • High chemical resistance thanks to T.E.A. Coating
  • Temperature range from -20°C to + 150°C
  • Working pressure up to 16 bar
  • Suitable for vacuum applications down to -750 mmHg
  • Different thread types: BSPP ISO 228, metric
  • REACH and RoHS2 compliant
  • The T.E.A coating meets the international food standards NSF51, NSF4, UNI10531 and 11460

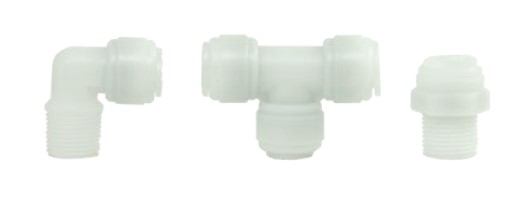

POM push-in fittings - high performance

POM push-in fittings - high performance

  • Suitable for drinking water and food
  • Working pressure up to 20 bar
  • Temperature range from -20°C to + 98°C
  • Suitable for vacuum applications down to -750 mmHg
  • High chemical and mechanical resistance
  • EPDM seal
  • Dynamic gripping system with safety clips for secure attachment
  • Different thread types: BSPT ISO 7, BSPP ISO 228, UNF, UNS, NH
  • REACH and RoHS2 compliant
  • Meets international standards NSF51, NSF61, ACS, DM174, EC1935
